Powrmatic OUH Suspended Oil Unit Heater

The OUH range of Suspended Oil Unit Heater are indirect oil fired suspended warm air heaters with a stainless steel heat exchanger as standard and a downwards high/low firing pressure jet oil burner. Supplied in axial fan free-blowing format, it can be installed directly into the space to be heated, or with centrifugal fan for ducted applications. The OUH range of oil fired unit heaters is comprised of 4 models with outputs ranging from 30kW to 60kW.

Fuel Type
Oil
KW Output
30-60
Heater Exchange Warranty
10YRS
Parts/Labour Warranty
2YRS / 1YRS

30kw to 60kw oil fired suspended warm air unit heater

Reduced NOx technology
British built
35 & 38 second oil fired options
ErP compliant
Compact and proven design
Stealth RAL 7015 as standard

Features

Air Movement
Axial fan heaters are fitted with a single fan set and discharge warmed air directly into the heated space via adjustable horizontal louvres. Vertical louvres are available as an option where lateral air discharge is required. Centrifugal fan models benefit from a close coupled fan which discharges warmed air via a duct outlet spigot suitable for the onward connection of ductwork.

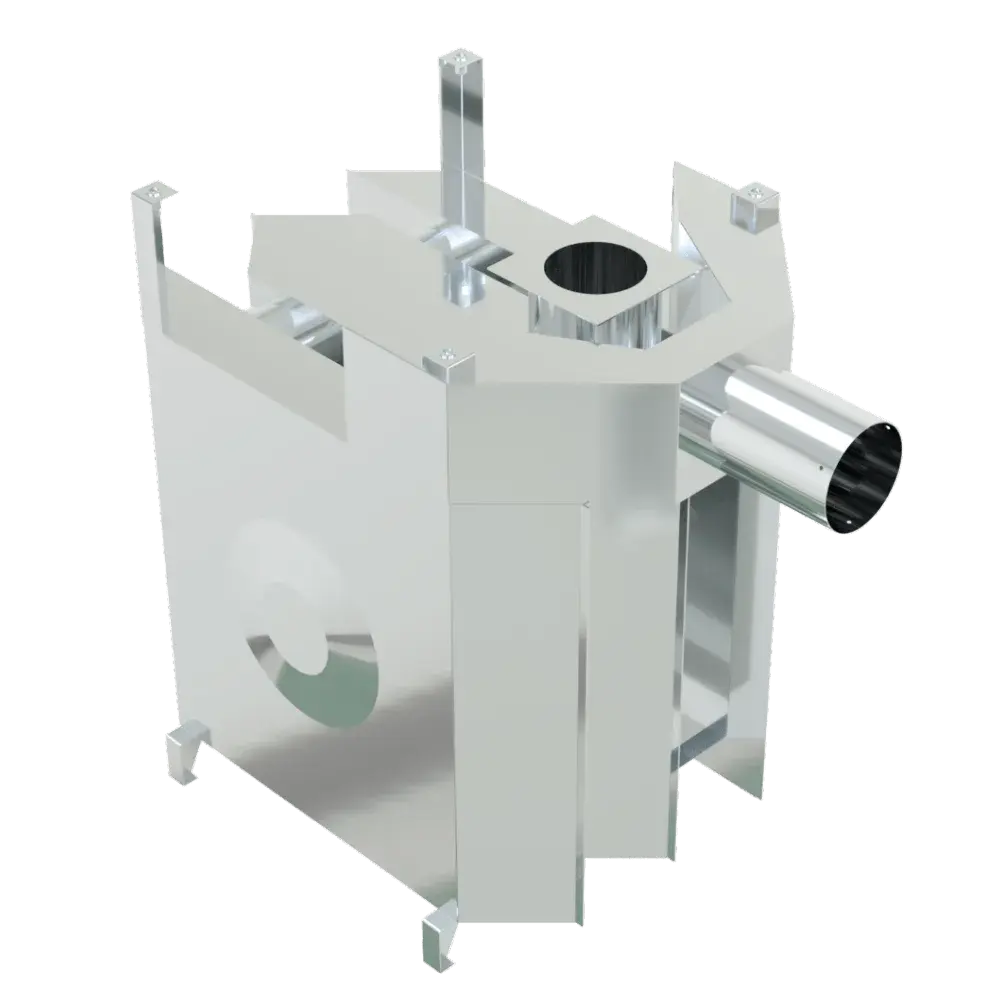

Heat Exchanger
The robust and proven heat exchanger is manufactured as standard from 304-grade stainless steel and lifecycle tested to ensure long service life.
Burner Technology
Powrmatic working alongside market leading burner manufacturer Riello now utilise a pre-fitted and tested low NOx, high-low control “ Gulliver “ burner as standard.
Simple, flexible, and economic control
The Powrmatic optimised start controller is designed for ease of use and to maximise the performance of your suspended oil unit heater. It can control individual (MC200) or multiple heaters (MC300) allowing for the flexibility of variable time and temperature control as well as optimised start/stop prediction. By monitoring the heating systems previous performance it can determine the optimum time to turn the heating on to raise the building temperature to the required level.
