Powrmatic SRP Linear & U-Tube Radiant Heaters

The range of Linear U-Tube Forced & Vacuum Burner Heaters Superior Radiant Products (SRP®) from Powrmatic feature optimal comfort and energy savings with two-stage technology. High/low capability allows for quicker recovery on the high fire and economical steady operation on the low fire with either U-Tube, Single and Double Linear configurations. SRP Linear & U-Tube Radiant Heaters comprises with outputs ranging from 10 to 60kW offering maximum efficiency from lightweight radiant heating tubes providing direct heat and warmth in a multitude of industrial, commercial and retail applications.

Fuel Type
Gas
KW Output
15-60
Parts/Labour Warranty
2YRS / 1YR

Low NOx Technology
Forced or Vaccum Burner Option
Efficient Reflector Profile
U-Tube or Linear Configurations
Effective Spot Heating Solution

Features

Trusted Partnership
Superior Radiant Products (SRP®) is an industry leader in the design and manufacture of energy efficient infrared heating solutions and is dedicated to providing superior technology and superior performance.
Brackets & Suspension
SRP Linear & U-Tube Radiant Heaters supported by heavy-duty galvanised hangars with single or double point suspension from the building structure. These rugged hangers are designed to carry the weight of the entire system and can be supported to direct the emitter at a 45 degree angle if needed.

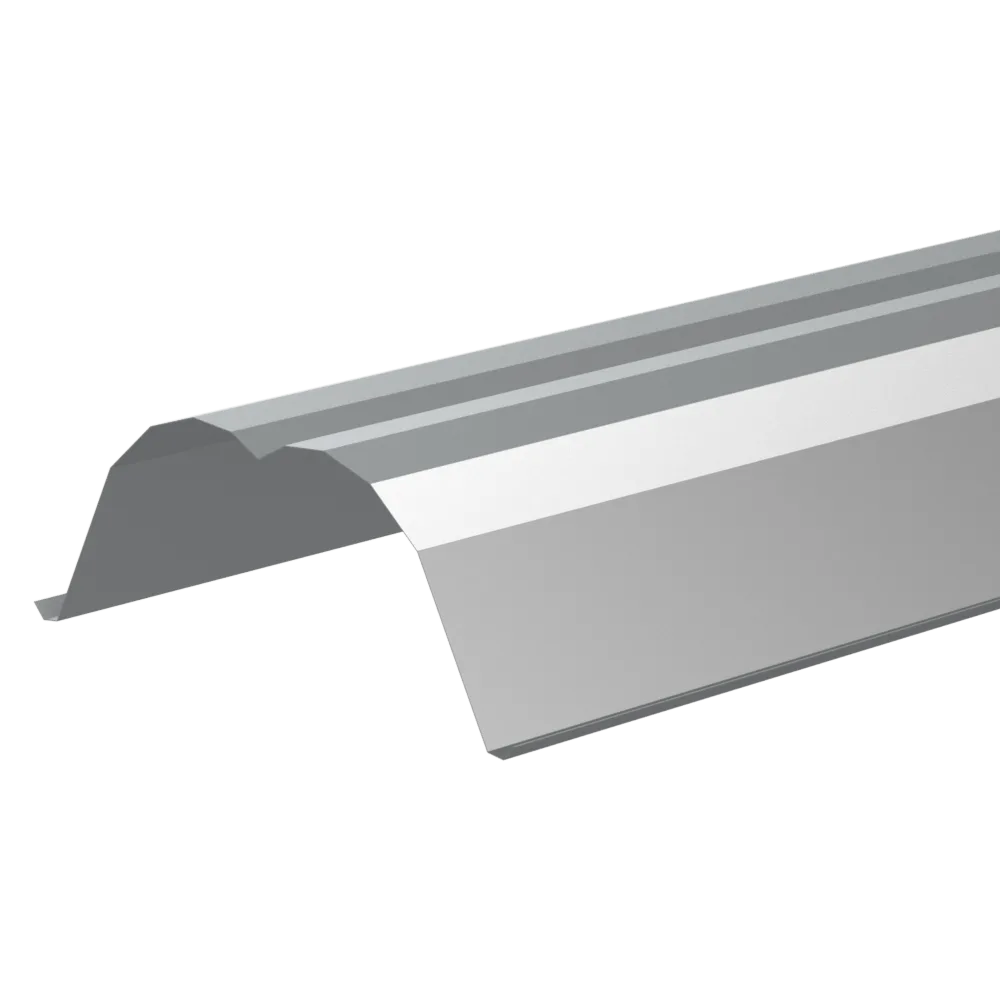

Efficient Reflectors
Competition falls short SRP’s reflector directs nearly 100% of all energy from the tube into the space, and is the most efficient reflector in the industry. Using premium ASTM 1100 Aluminium, the reflectors are formed with a 100% efficient reflector profile designed to maximise the downward radiant heating effect and increase maximum efficiency.

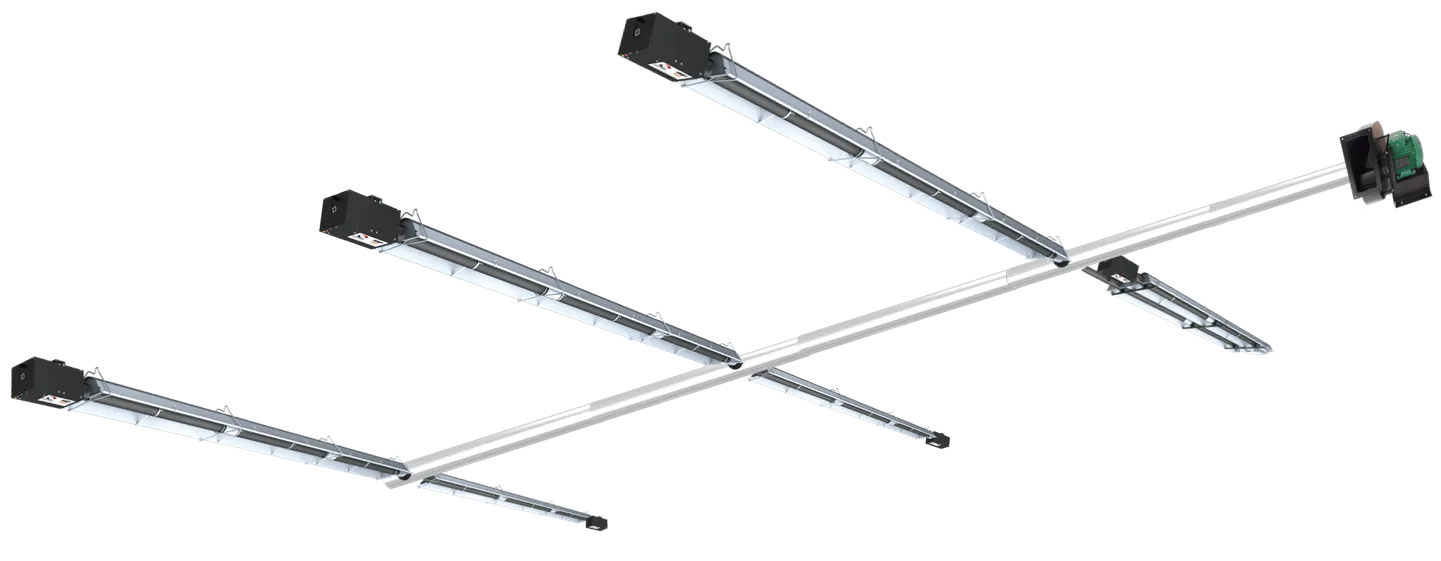

Multi-Burner Herringbone System
The range can be supplied with either induced vacuum burners or forced blown burners to provide different technically sound options. Unitary heaters may be installed with individual flues or combined to form a “Herringbone” type single flue system where site conditions dictate.

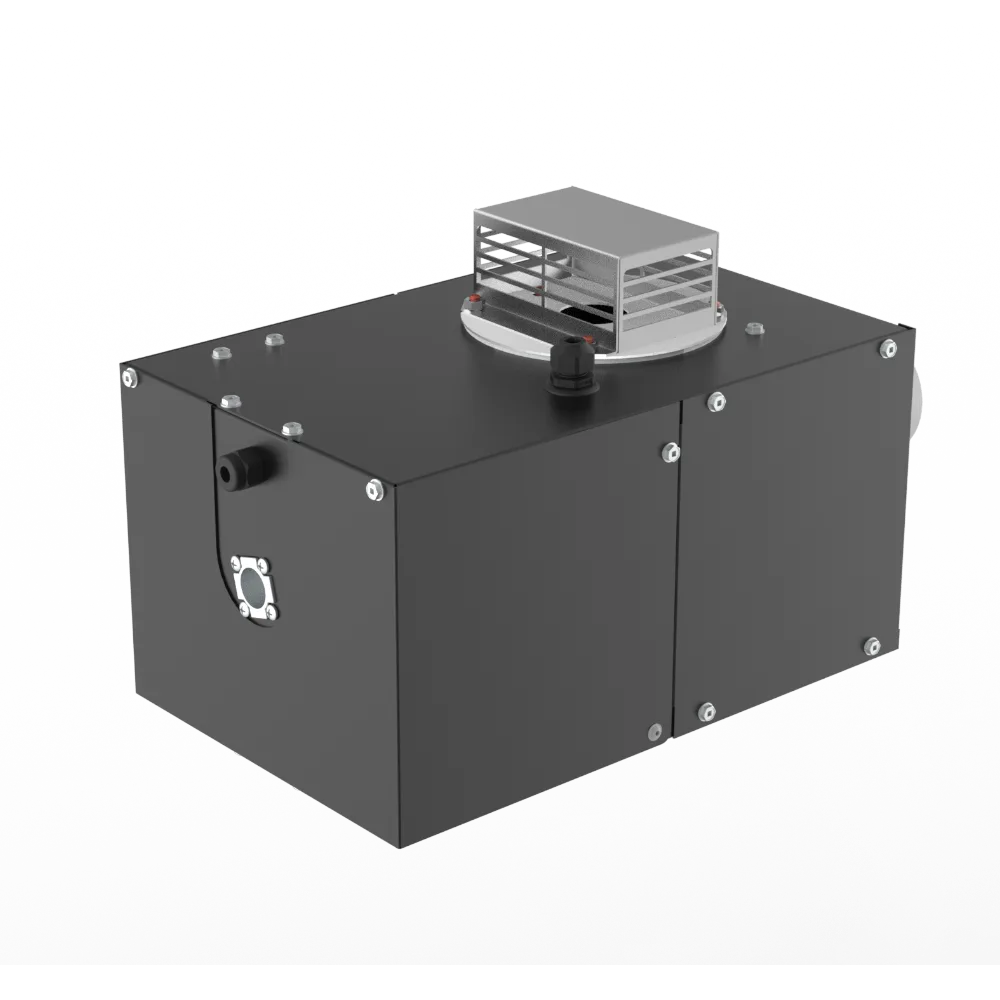

High-Low Burner Technology
The range offers two stage high/low burners as standard. Automatic operation is ensured using the MC200 energy saving controllers with remote black-radiant sensors. Quick heat up and recovery is enhanced with additional fuel savings whilst excellent spot heated environmental comfort is guaranteed.
Heat Treated Tube Design
Made with a heat treated aluminised calorised emitter tube surface – for flake free and cleaner working environment and little maintenance. The superior emissivity provides maximum radiant output whilst reducing emission levels.
